SAS - SAS/SATA RAID

INFORTREND ES A08S-G2130-M2 8-Bay 2U SAS-TO-SATA II 256MB cache/RAID6/Dual SAS ports/RD PSU, ASIC400
INFORTREND ES A08S-G2130-M2 8-Bay 2U SAS-TO-SATA II 256MB cache/RAID6/Dual SAS ports/RD PSU, ASIC400
Технические Характеристики
RAID
Hardware RAID5 & RAID6
Supports RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60
RAID Migration
Configurable stripe size and write policy per logical drive
Multiple Global, Dedicated, & Enclosure-specific hot-spares
Automated Media Scan:
In degraded mode: skips irreparable blocks to continue rebuild
In normal operation: data-block verification and repair

Host Interface
Mini SAS SFF-8088
4 PHYs per Mini SAS connector
Concurrent I/O commands
Tagged command queuing up to 1024
Max. command queue up to 1024
One external cable included: IFT-9270CmSASCab01: SAS external cable, Mini SAS 4x to Mini SAS 4x (SFF-8088), 50cm, w/ Ferrite Core.
See more cabling options, please refer to the accessories page.

Drive Interface
Twelve (12), or eight (8) hot-swappable drive trays
Accommodates 1-inch pitch, 3.5-inch SATA-II 3Gb disk drives
S.M.A.R.T. and NCQ support
Automatic bad-sector reassignment
Dedicated bandwidth to each connected drive
Drive buffer on/off switch

System Components
Heavy duty 2U enclosure
Single RAID and I/O management controller module
Fault-tolerant modules interfaced through a common backplane
One (1) 256/512MB DDR DIMM module (default, supports up to 2GB in size)
Redundant, hot-swappable 350W power supply units
Redundant, dual-speed cooling modules
Hot-swappable drive trays with anti-tamper locks
Two (2) forearm handles
Li-Ion battery backup unit (BBU), life expectancy and charge level aware

Management
COM1 serial port for local access to firmware-embedded utility
COM2 for UPS serial connection
GUI, Telnet, and SSH system monitoring via Ethernet
Browser-based or Java-based RAIDWatch manager software
Firmware-embedded manager via RS-232C (audio jack) that is platform independent
Widest range of event notification methods including Email, LAN broadcast, fax, SNMP traps, SMS, and MSN
LCD keypad panel to all configuration options
Variable logical drive options per DIMM size
Module status LED indicators:
Two (2) per drive tray
Seven (7) per controller module
One (1) per power supply unit
One (1) per BBU module
Two (2) per cooling module

Chassis without handles: 446(W) x 88(H) x 490(D) mm
Chassis with handles: 482 (W) x 88(H) x 505(D) mm
Package: 381H x567W x 772D mm
Net weight: 23.5kg
Gross weight: 25kg

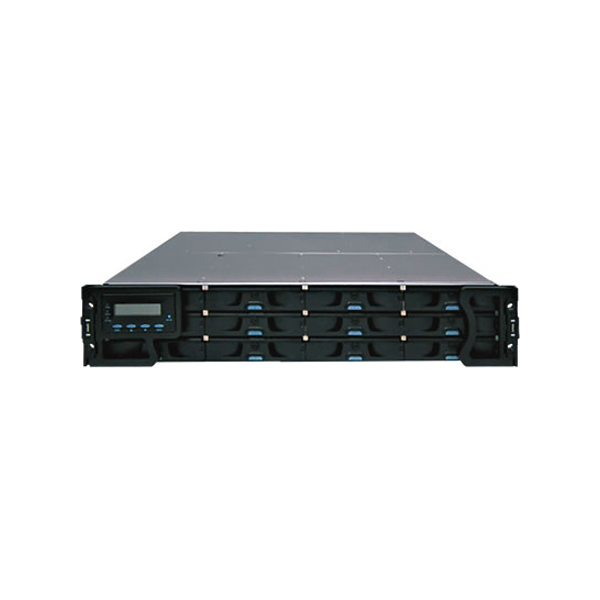

INFORTREND ES A12S-G2130-M2 12-Bay 2U SAS-TO-SATA II 256MB cache/RAID6/Dual SAS ports/RD PSU,ASIC400
INFORTREND ES A12S-G2130-M2 12-Bay 2U SAS-TO-SATA II 256MB cache/RAID6/Dual SAS ports/RD PSU,ASIC400
Технические Характеристики
RAID
Hardware RAID5 & RAID6
Supports RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60
RAID Migration
Configurable stripe size and write policy per logical drive
Multiple Global, Dedicated, & Enclosure-specific hot-spares
Automated Media Scan:
In degraded mode: skips irreparable blocks to continue rebuild
In normal operation: data-block verification and repair

Host Interface
Mini SAS SFF-8088
4 PHYs per Mini SAS connector
Concurrent I/O commands
Tagged command queuing up to 1024
Max. command queue up to 1024
One external cable included: IFT-9270CmSASCab01: SAS external cable, Mini SAS 4x to Mini SAS 4x (SFF-8088), 50cm, w/ Ferrite Core.
See more cabling options, please refer to the accessories page.

Drive Interface
Twelve (12), or eight (8) hot-swappable drive trays
Accommodates 1-inch pitch, 3.5-inch SATA-II 3Gb disk drives
S.M.A.R.T. and NCQ support
Automatic bad-sector reassignment
Dedicated bandwidth to each connected drive
Drive buffer on/off switch

System Components
Heavy duty 2U enclosure
Single RAID and I/O management controller module
Fault-tolerant modules interfaced through a common backplane
One (1) 256/512MB DDR DIMM module (default, supports up to 2GB in size)
Redundant, hot-swappable 350W power supply units
Redundant, dual-speed cooling modules
Hot-swappable drive trays with anti-tamper locks
Two (2) forearm handles
Li-Ion battery backup unit (BBU), life expectancy and charge level aware

Management
COM1 serial port for local access to firmware-embedded utility
COM2 for UPS serial connection
GUI, Telnet, and SSH system monitoring via Ethernet
Browser-based or Java-based RAIDWatch manager software
Firmware-embedded manager via RS-232C (audio jack) that is platform independent
Widest range of event notification methods including Email, LAN broadcast, fax, SNMP traps, SMS, and MSN
LCD keypad panel to all configuration options
Variable logical drive options per DIMM size
Module status LED indicators:
Two (2) per drive tray
Seven (7) per controller module
One (1) per power supply unit
One (1) per BBU module
Two (2) per cooling module

Chassis without handles: 446(W) x 88(H) x 490(D) mm
Chassis with handles: 482 (W) x 88(H) x 505(D) mm
Package: 381H x567W x 772D mm
Net weight: 23.5kg
Gross weight: 25kg

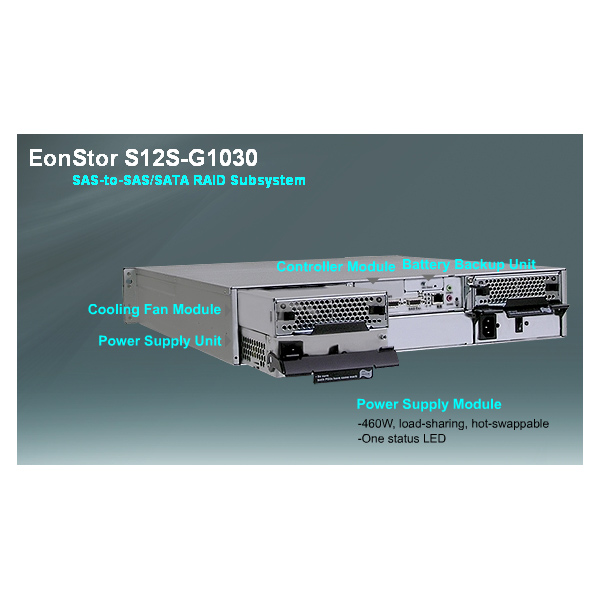

INFORTREND ES S12S-G1030-M5 12-Bay 3U SAS-TO-SAS RAID 512MB/RAID6/ SAS or SATA II HDD/4 SAS PORT
INFORTREND ES S12S-G1030-M5 12-Bay 3U SAS-TO-SAS RAID 512MB/RAID6/ SAS or SATA II HDD/4 SAS PORT INFORTREND ES S12S-G1030-M5 12-Bay 3U SAS-TO-SAS RAID 512MB/RAID6/ SAS or SATA II HDD/4 SAS PORT
Технические Характеристики
RAID Controller:
Hardware RAID5 & RAID6 parity computation
Supports RAID 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60, and NRAID
RAID Migration
Configurable stripe size and write policy per array
Multiple Global, Dedicated, & Enclosure-specific hot-spares
Intelligent Drive Handling:
In degraded mode: skips irreparable blocks to continue rebuild
In normal operation: data-block verification and repair

Host Interface:
Two (2) SAS 4x wide port
12Gb/s bandwidth via SFF-8470
Concurrent I/O commands
Tagged command queuing up to 256

Drive Interface:
Twelve (12) 3.0Gbps SAS, hot-swappable drive trays
Accommodates 1-inch pitch, 3.5-inch SAS or SATA-II (3Gbps) (3Gbps) disk drives
S.M.A.R.T. and NCQ support
Automatic bad-sector reassignment
Dedicated bandwidth to each connected drive
Proprietary enclosure service support through the expansion link

System Components:
Heavy duty (High desity) 2U enclosure
Single RAID and I/O management controller module
Fault-tolerant modules interfaced through a common backplane
One (1) 512MB DDR DIMM module (default, supports up to 2GB in size)
Redundant, hot-swappable 460W power supply units
Redundant, dual-speed cooling modules
Twelve (12), hot-swappable drive trays
Two (2) forearm handles
Optional Li-Ion battery backup unit (BBU), life expectancy and charge level aware

Management:
COM1 serial port for local access to firmware-embedded utility
COM2 for UPS connection

GUI, Telnet, and SSH system monitoring via Ethernet
Browser-based or Java-based RAIDWatch manager software
Firmware-embedded manager via RS-232C (audio jack) that is platform independent
Widest range of event notification methods including email, LAN broadcast, fax, SNMP traps, SMS, and MSN
LCD keypad panel to all configuration options
Variable logical drive options per DIMM size

Module status LED indicators:
Two (2) per drive tray
Seven (7) per controller module
One (1) per power supply unit
One (1) per BBU module
Two (2) per cooling module
Presence detect & thermal sensors via I 2 C bus

Physical/Electrical:
Interfaces
Two (2) SAS 4x host ports each with 12Gb/s bandwidth
One (1) SAS 4x Exp. port each with 12Gb/s bandwidth
One (1) Fast Ethernet management port
Two (2) serial COM ports (38400, n, 8, 1)

Power Supply Module:
Two (2) redundant hot-swappable power supplies with PFC

Cooling Module:
Redundant dual-thermal-fan cooling modules

Dimensions:
Chassis without handles: 446(W) x 88(H) x 490(D) mm
Chassis with handles: 482 (W) x 88(H) x 505(D) mm
Package: 381H x567W x 772D mm

System weight (w/o drives):
Net weight: 23.5kg
Gross weight: 25kg

INFORTREND ES S16S-J1000-S 16-Bay 3U SAS JBOD 2 SAS PORT (IN-OUT) SAS or SATA II HDD
INFORTREND ES S16S-J1000-S 16-Bay 3U SAS JBOD 2 SAS PORT (IN-OUT) SAS or SATA II HDD
Технические Характеристики
SAS JBOD Subsystem
3U 16-bay rackmount, single controller module
Two SAS ports (IN-OUT) for connecting RAID controller and chaining to the next SAS JBOD
SAS and SATA-II drives both supported
Redundant PSUs and redundant FANs with status LEDs (no LCD front panel)
